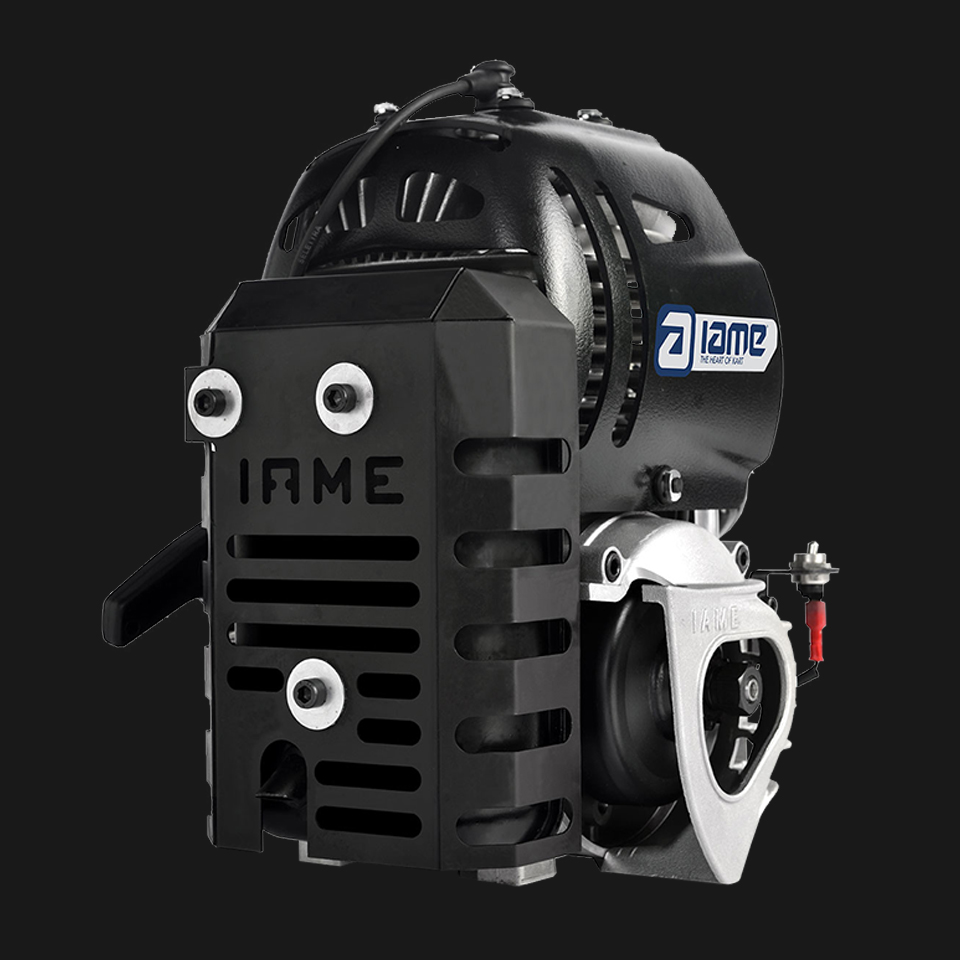

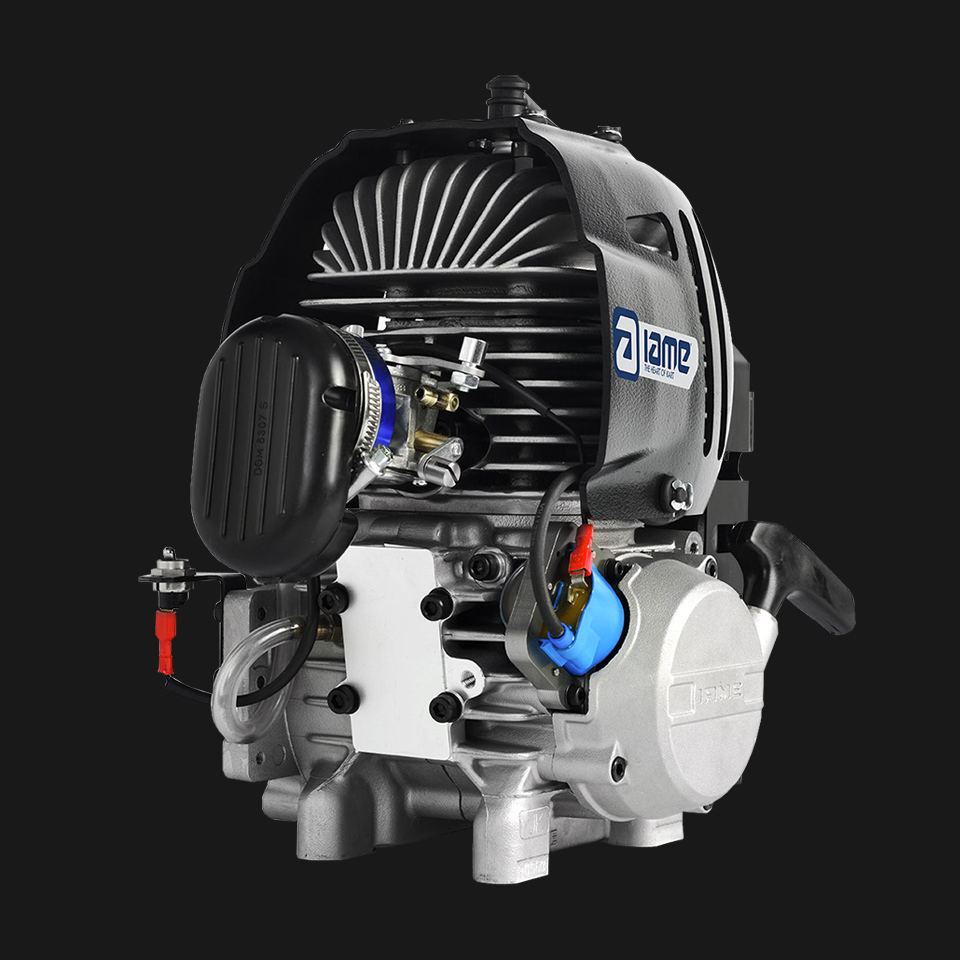

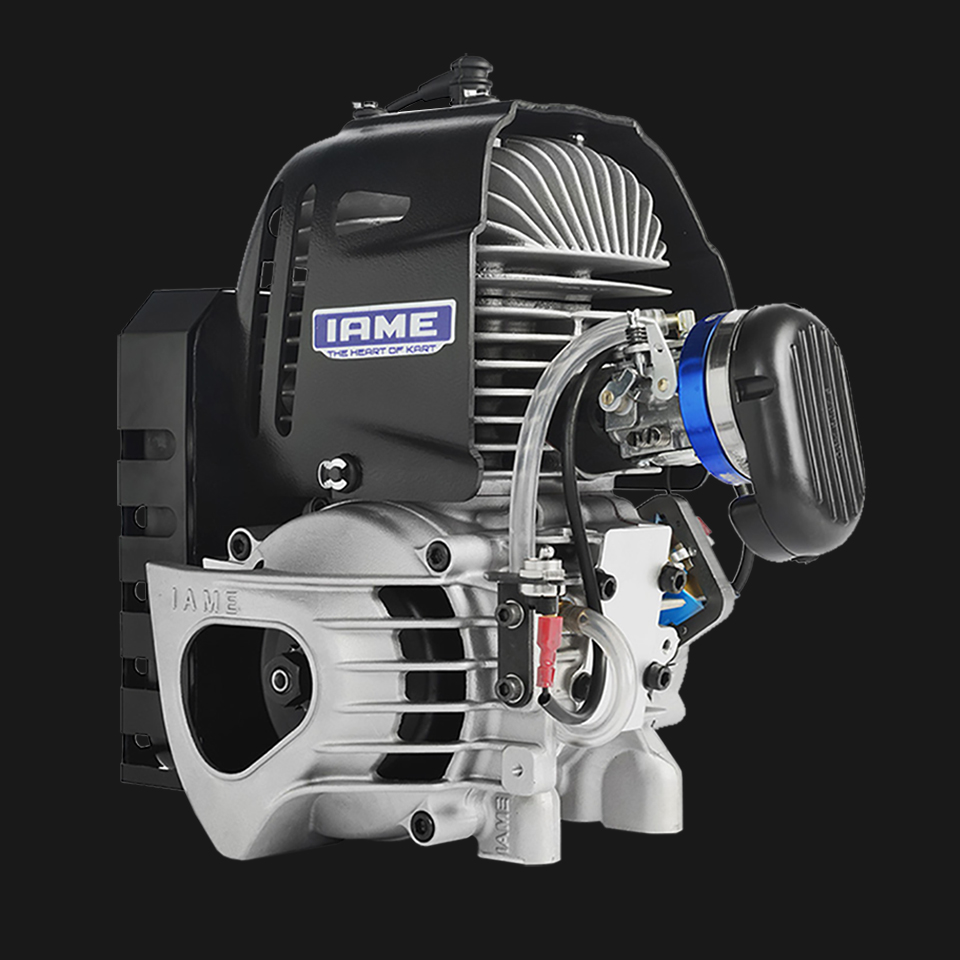

The M1 is the latest in IAME’s production and is their entry for the Bambino karting category.
This small and compact 60cc power unit is designed to introduce the very youngest drivers to Karting and to make life as easy as possible to Dads and Mechanics. The M1 has a very easy installation process with all accessories fixed to the main engine block. Attached is an easy and effective pull start system and a Tillotson diaphragm carburetor. The exhaust system is also integrated to the main motor. A practical ON/OFF switch is located on the right side of the engine providing easy and immediate access to operators.
Complete engine package includes:
- Exhaust Unit
- Spark plug & cap
- Clutch assembly
- Carburettor (Tillotson HS 323A)
- Air filter
Iame M1 - Bambino - Specs
| Model | M1 |
| Displacement | 60cc |
| Bore | 41.80mm |
| Stroke | 43.35mm |
| Starter | Pull |
| Transmission | Dry Clutch |
| Cooling System | Air |
| Number Of Transfers | 2 |
| Fuel Mixture | 4% |
| Admission | Piston Valve |
| Spark Plug | NGK |
| Carburettor | Tillotson HS-323A |
