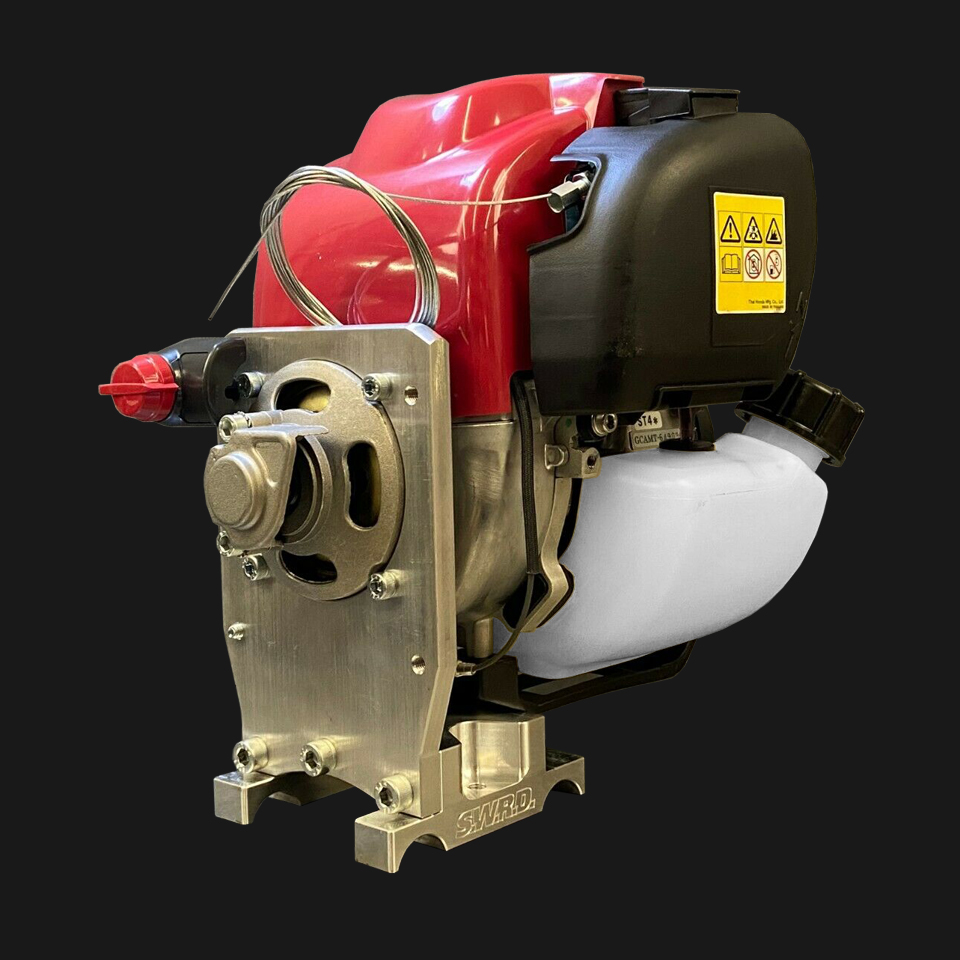

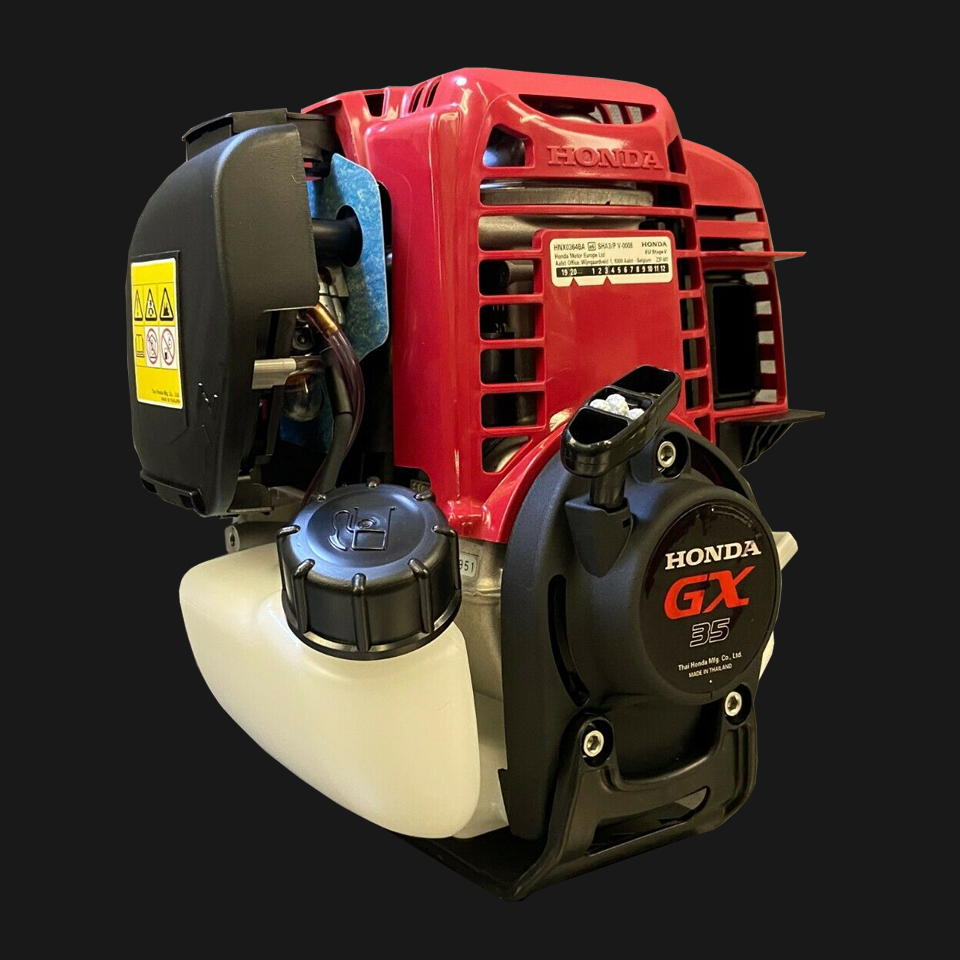

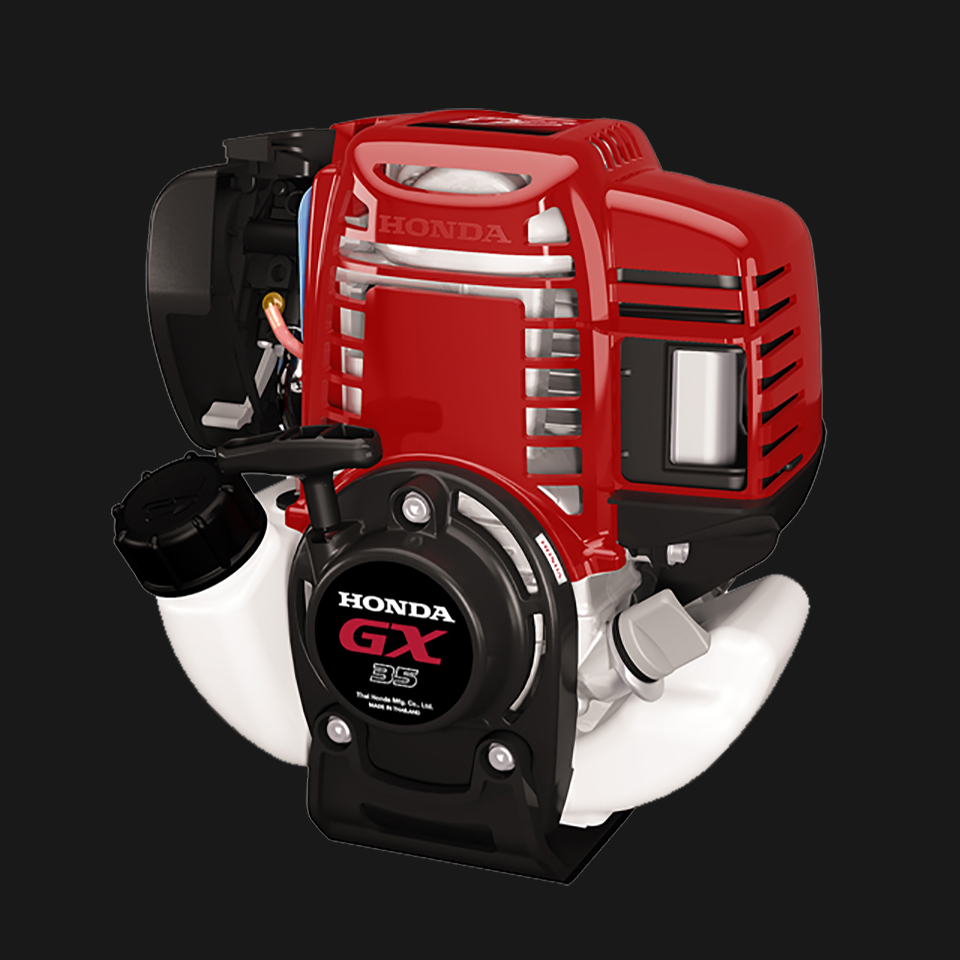

The GX35 engine is an alternative power unit for the Bambino category karts, ideal for a novice or younger driver for pre-race testing. It is also a more durable and cost effective option for the corperate/hire market.
The engine is a perfect replacement for 2-stroke engines in various applications like brush-cutters and non-handheld applications like concrete screeds, tillers and pumps.
Engine features:
- The world’s first 360° inclinable 4-stroke engine, for operation in any position
- The OHC design driven by a maintenance-free, low-noise timing belt, makes the engine more compact and light
- Easy starting, low noise and superb acceleration
- High quality materials and purpose-built components ensure reliable long-term use
- Meets world’s most stringent environmental legislation
- Â Low fuel and oil consumption
Honda - GX35 - Specs
Model | Honda - GX135 |
Type | 4 Stroke OHC |
Cooling System | Air Cooled |
Displacement | 35.8cc |
Net Power Output | 1.3hp (1.0 kW) at 7000rpm |
Net Torque | 1.6 Nm at 5,500 rpm |
Compression Ratio | 8:1 |
Ignition System | Transistorised magneto |
Starting System | Recoil Starter |
Lubrication System | Oli Mist |
Oil Capacity | 0.1l |
Dimensions | 198 x 234 x 240mm |
Dry Weight | 3.33kg |
